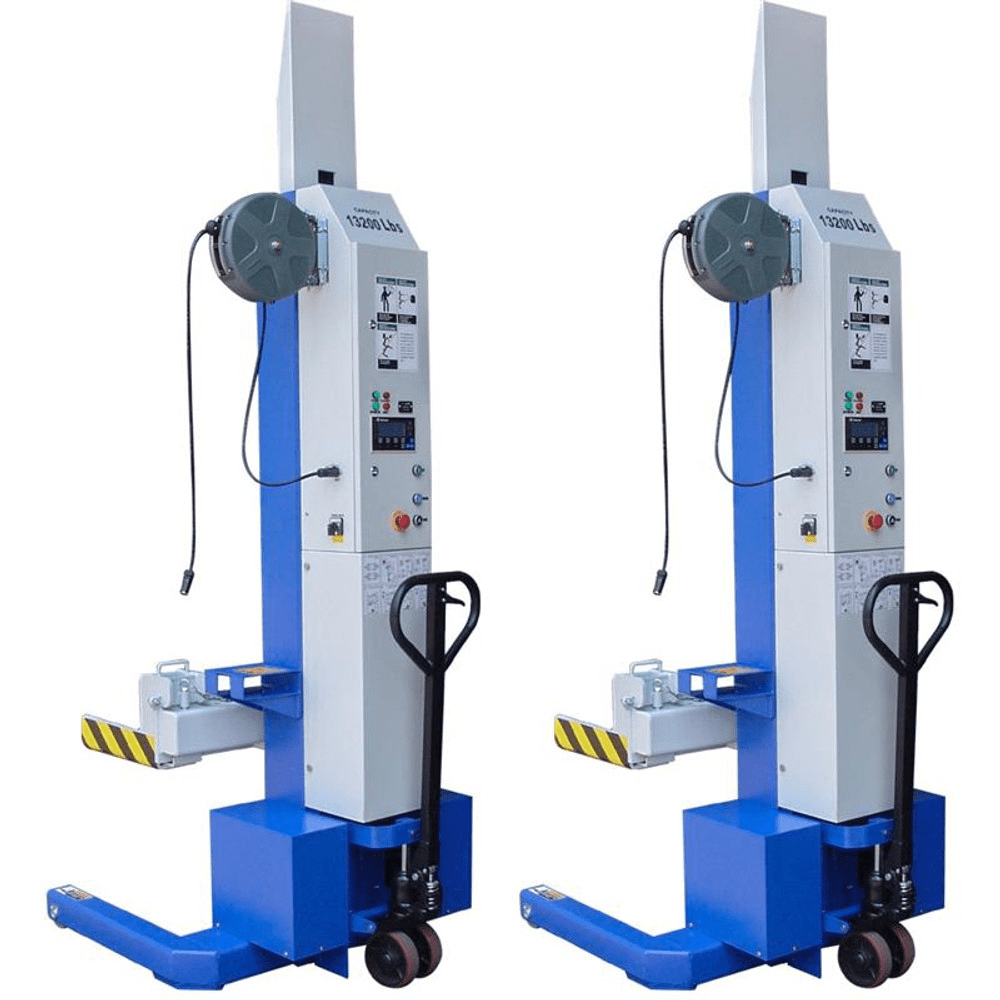

IDEAL MSC-13K-B-226 MOBILE COLUMN LIFT, TWO COLUMN SET, 26,000 LBS.

Name: IDEAL MSC-13K-B-226 MOBILE COLUMN LIFT, TWO COLUMN SET, 26,000 LBS.
SKU: 1902
Availability: InStock

Original price was: $6,000.00.Current price is: $5,890.00.

Description

About this item :

The MSC-13K-B can be purchased in sets of 2, 4 or 6 columns with a total capacity up to 78,000 lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows safe lifting of passenger cars, light pick up trucks when using optional accessories and up to a school bus or fire truck in the standard configuration.

Features

•Easy to use control panel
•Operable from any column
•Adjustable fork accommodates many tire sizes
•Direct drive hydraulic cylinder
•Independent mechanical lock system
•Battery operated with onboard charging system
•Surface mounted and easily moved in bay
•Can be stored out of the way when not in use to maximize work space
•Requires hydraulic oil before use (Not included)
•Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column

Specifications

Lift Models	MSC-13K-B-226
Column Configurations	2 Column
Capacity	26,000 lbs
AC Power (Input, Per Column)	100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column)	24VDC
Lifting Height	67.1″
Column Heights – Min/Max	Min. 88.6″ / Max 155.5″
Overall Width	44.1″
Fork Adjustable Range	6.3″ – 22″
Fork Length	14″
Fork to Column Clearance	9.3″
Rise Time	75S
Descent Time	60S
Maximum Distance between Columns	32.8′
Minimum Concrete Surface Strength	3000 PSI
Noise Level	70 dB(A)
Set-Up / Operation	Indoors
Battery Type (Not included)	12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
Ship Weight	1,210 lbs per Column
