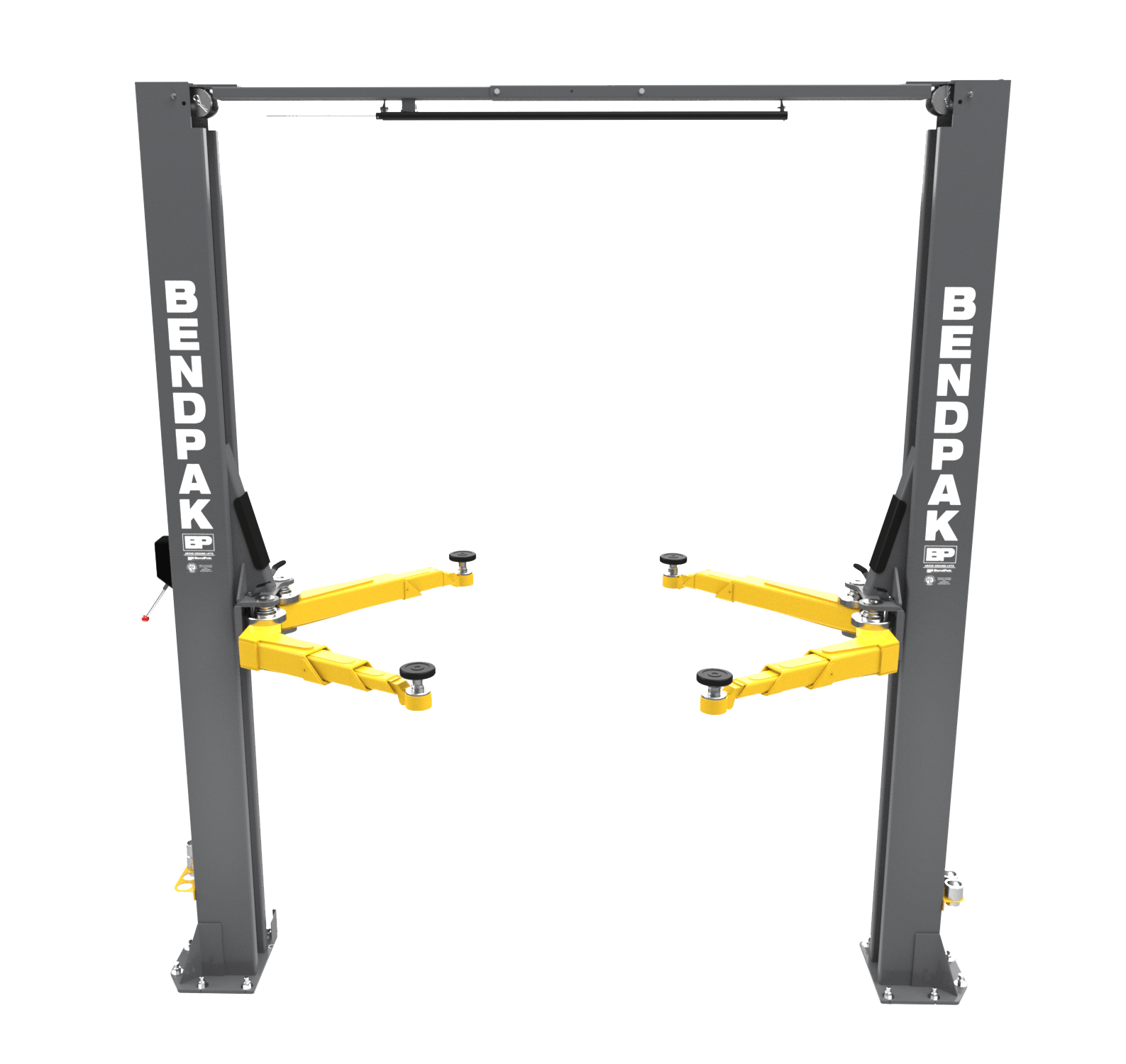

10AP 10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads

Original price was: $5,000.00.Current price is: $4,799.00.

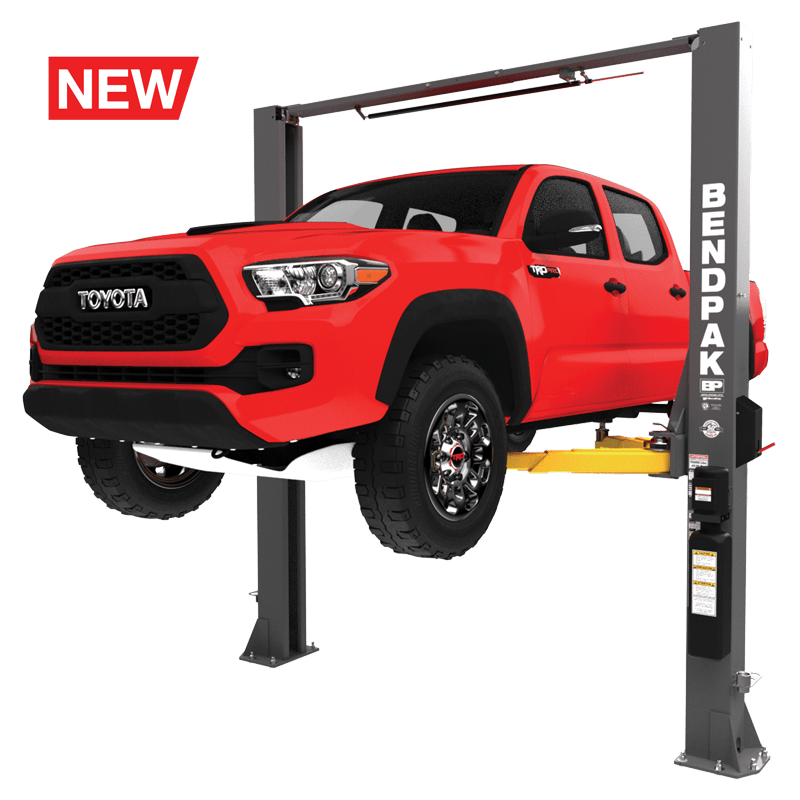

The 10AP is a lift with a 10,000 lb. capacity, adaptable clearfloor design, adjustable width, and screw pads. This lift is designed for lifting vehicles for maintenance and repair purposes.

Description

10AP 10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads

The 10AP is a lift with a 10,000 lb. capacity, adaptable clearfloor design, adjustable width, and screw pads. This lift is designed for lifting vehicles for maintenance and repair purposes. The adaptable clearfloor design allows for easy access to the undercarriage of the vehicle, and the adjustable width makes it suitable for a wide range of vehicles. The screw pads provide added stability and safety during the lifting process. The 10AP is a versatile and reliable option for garages and repair shops.

Features & Specs

Durable powder coat finish
Expandable top beam accommodates wide or narrow drive-thru configurations
Double-telescoping screw pads offer increased versatility
Padded overhead safety shutoff bar

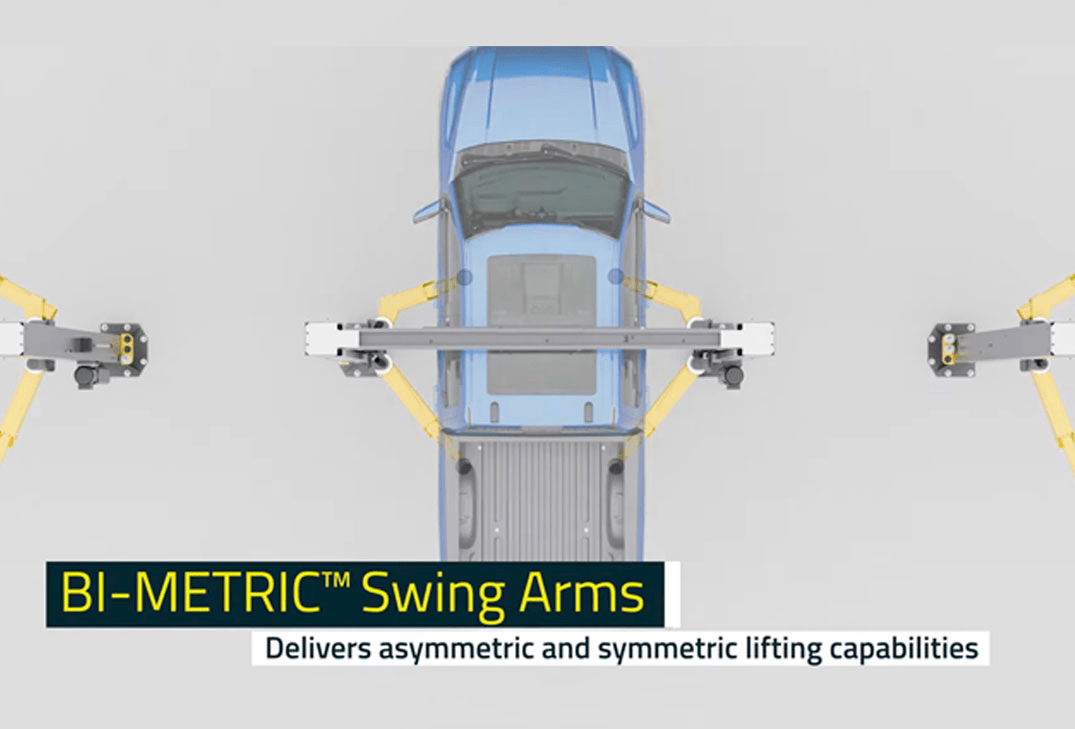

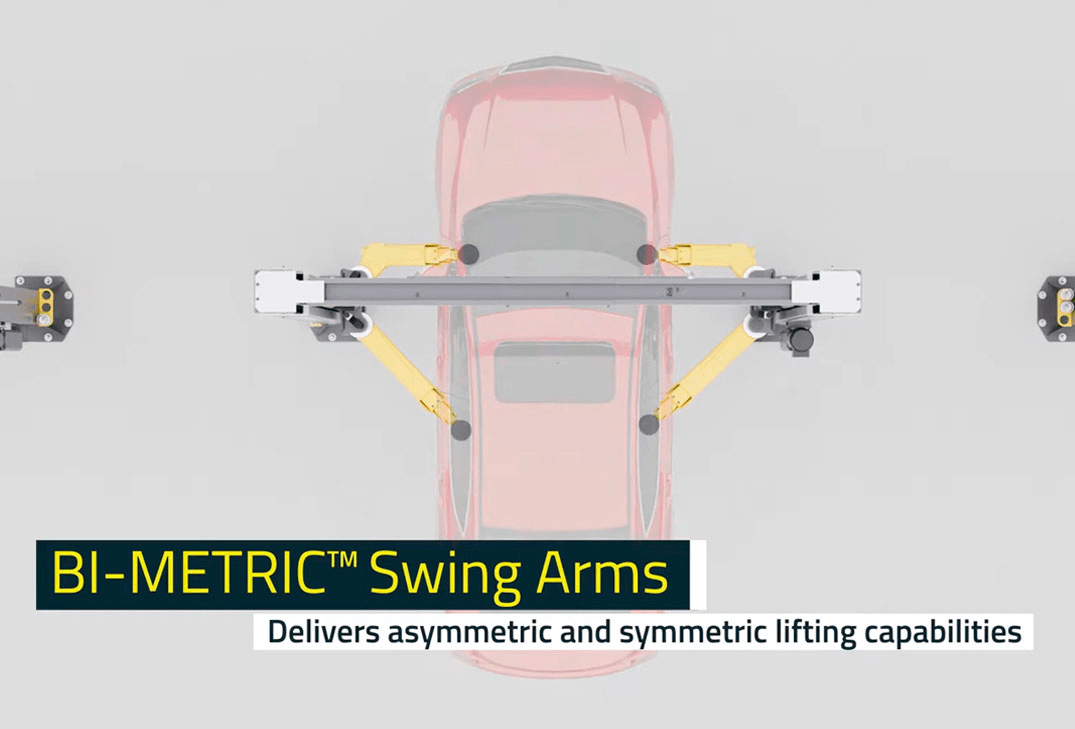

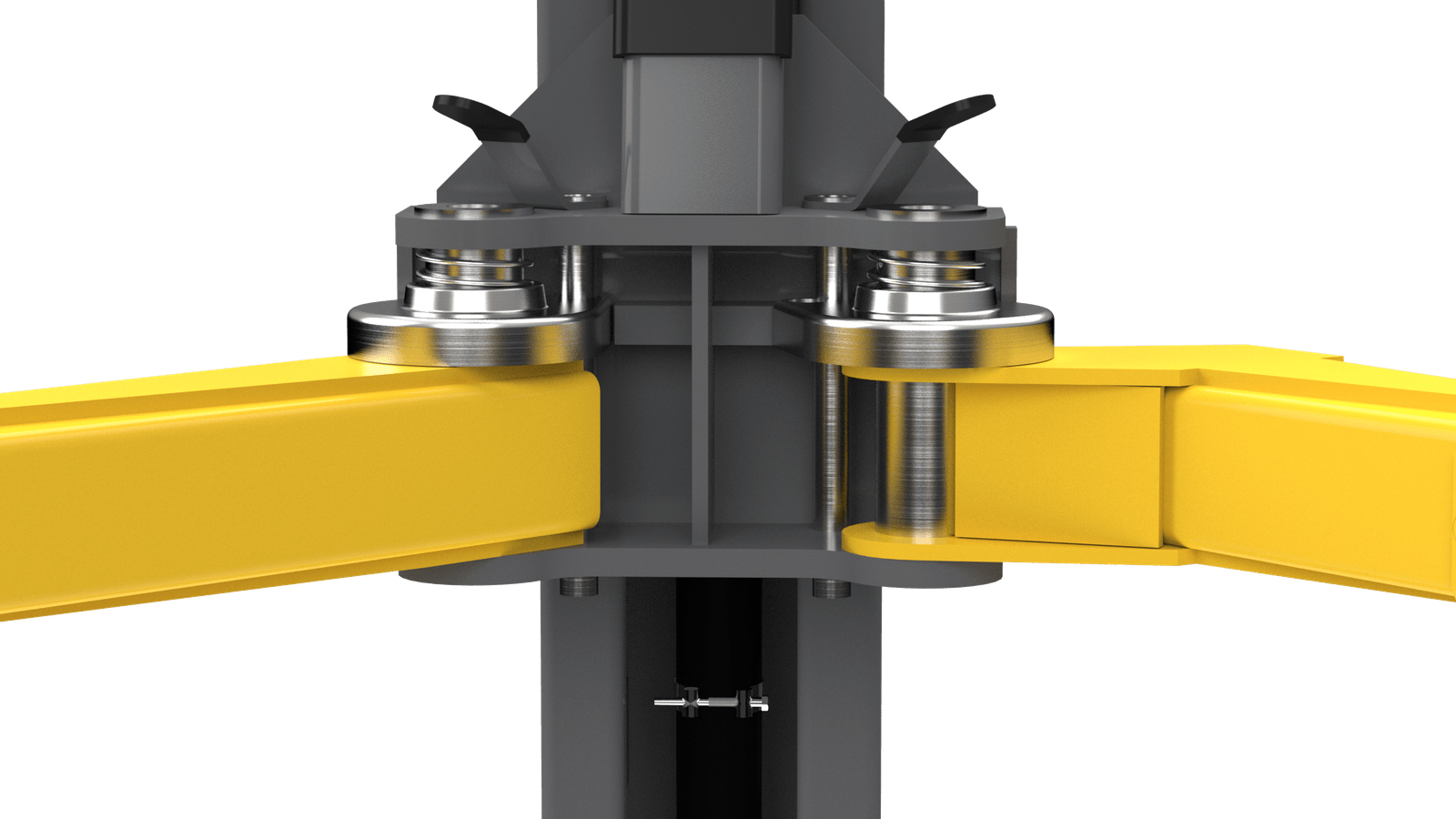

Exclusive Bi-Metric™ arm design for more versatile arm positioning
Single-point safety release
Drop-end arms provide a lower pad heigh
Dual hydraulic direct-drive cylinders
Oversized 53″ & 59″ tall carriages for superior strength and durability
Electric / hydraulic HVLP power system
Self-lubricating dura-glide UHMW polyethylene bearing system
Safety locks in each column spaced every 3″

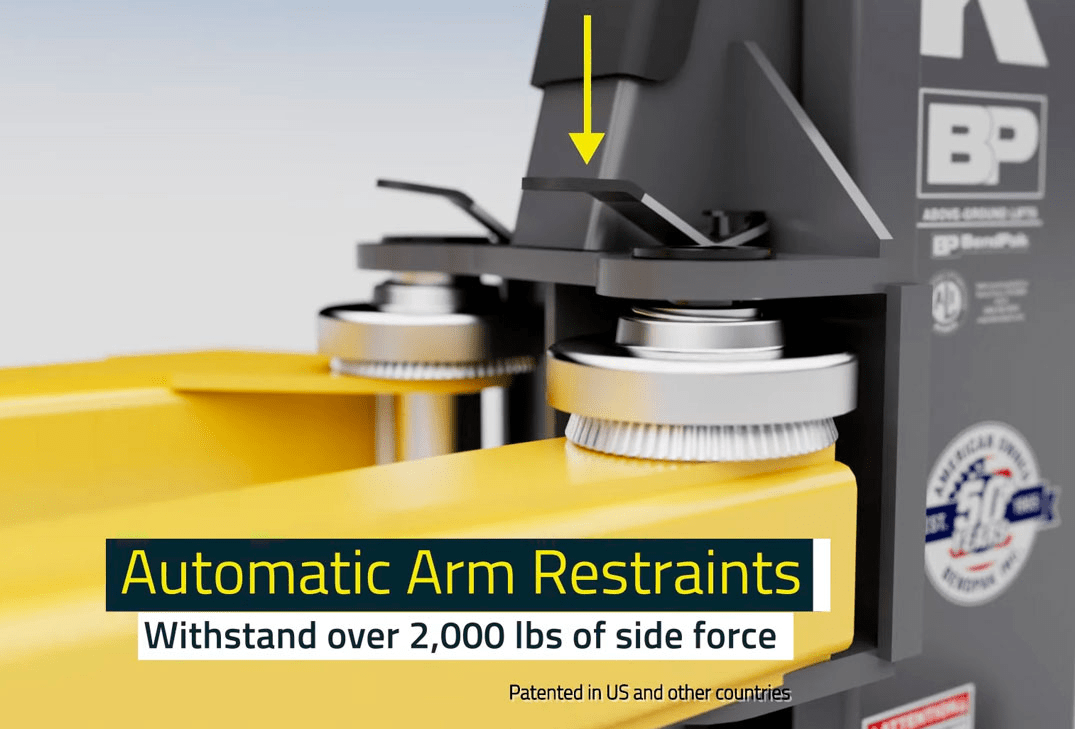

Automatic arm restraints withstand over 2000-pounds of side force
Heavy-duty 1/2″ aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue

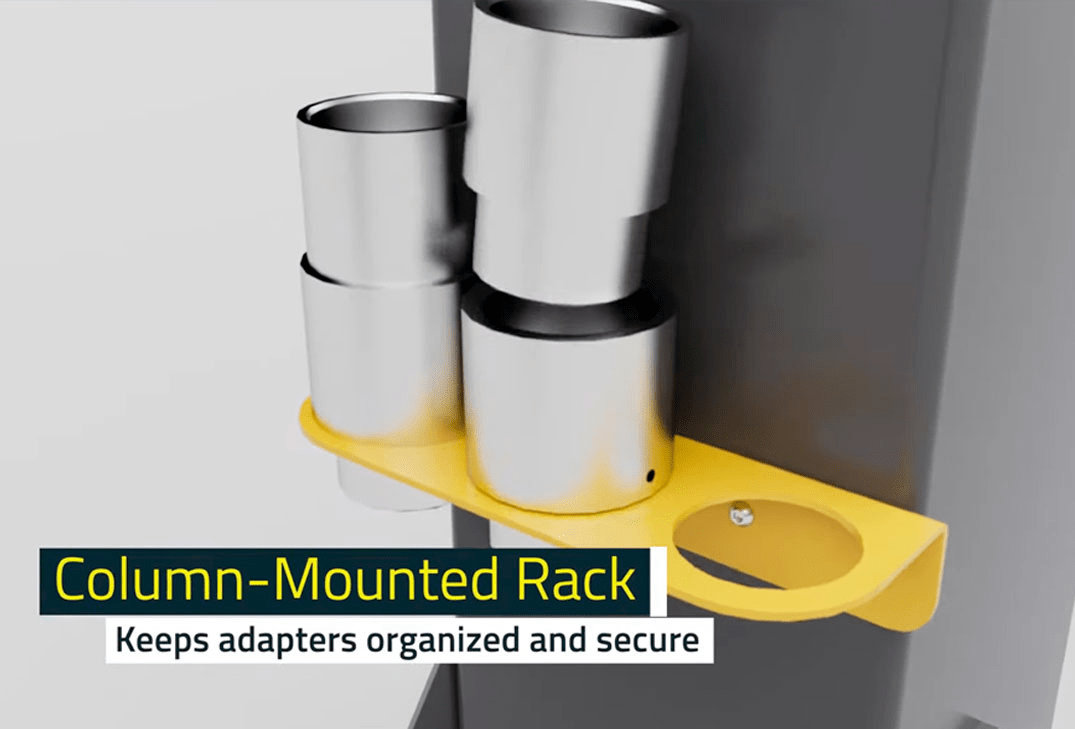

14-piece standard adapter set

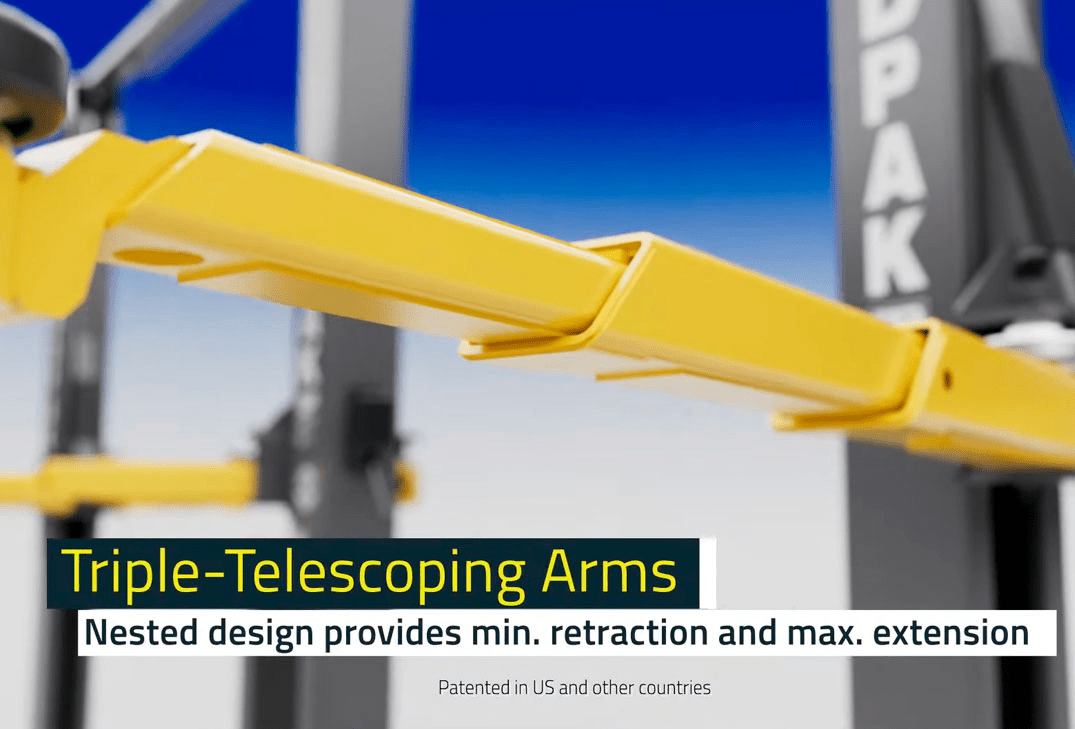

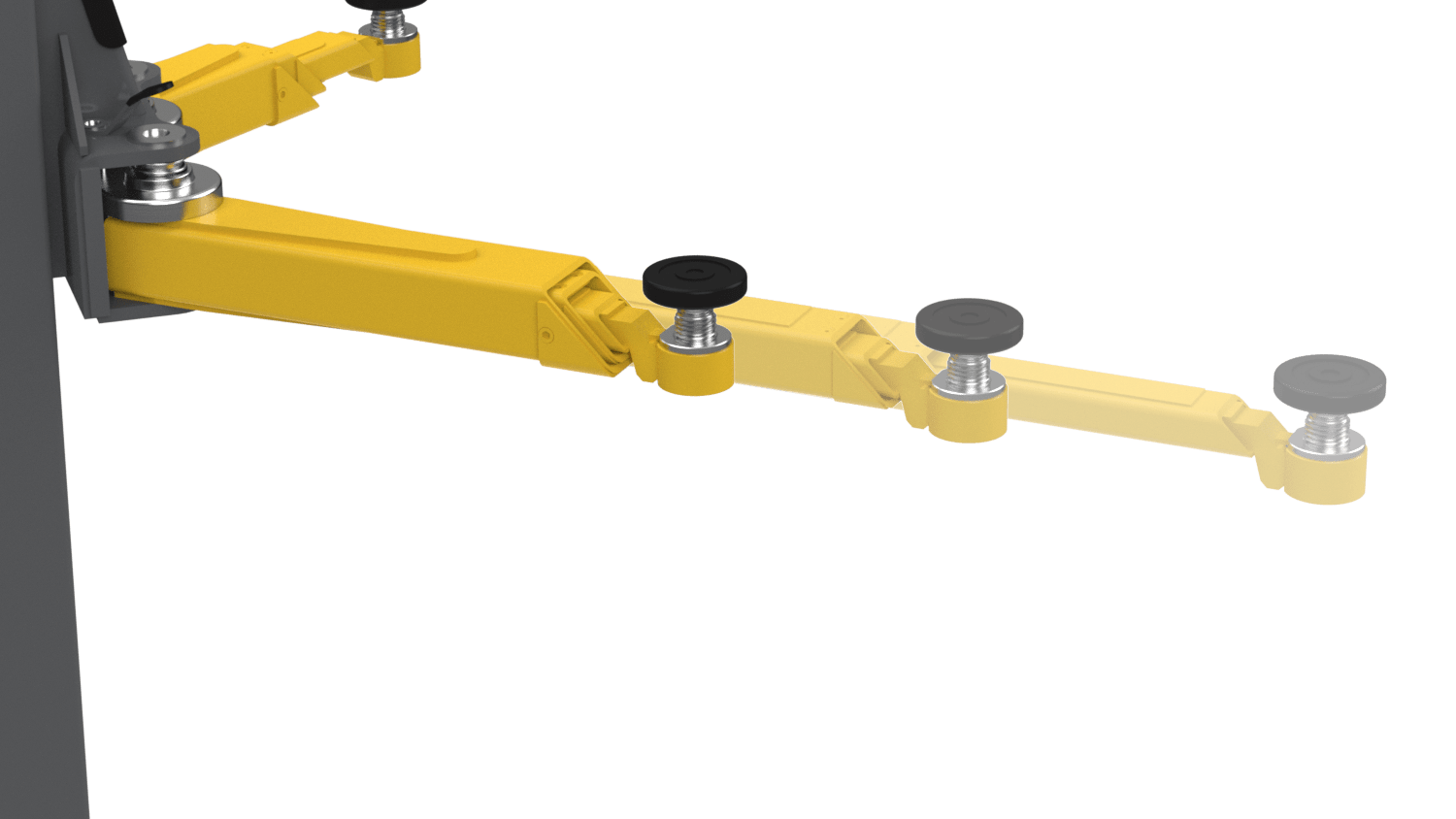

Four triple-telescoping arms
ALI certified

Capacity

Lifting Capacity*

10 000 lbs. (4 536 kg)

*Max Capacity / Front Axle

5 000 lbs. (2 268 kg)

*Max Capacity / Rear Axle

5 000 lbs. (2 268 kg)

Rise

A – Rise: 69″ (1 753 mm)

B – Rise + Pad Only: 73″ (1 854 mm)

C – Rise + Pad + 63 mm Adapter: 82,5″ (2 096 mm)

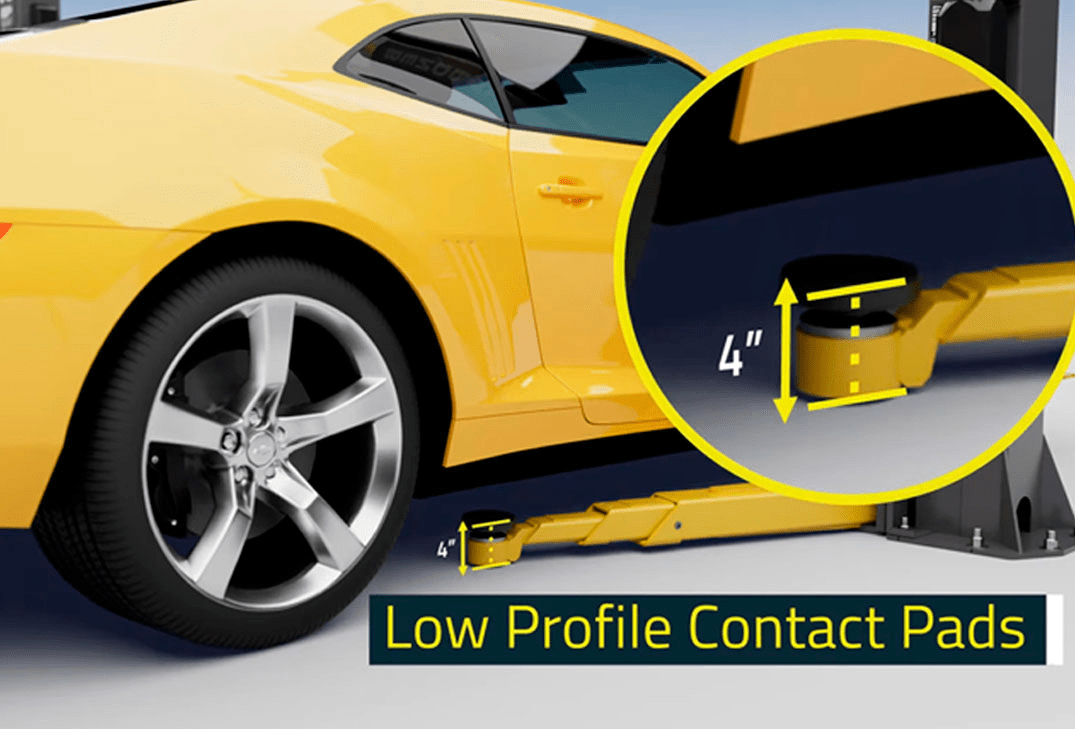

D – Min. Height + Pad: 4″ (102 mm)

Time to Full Rise: ≈45 seconds

Outside Dimensions

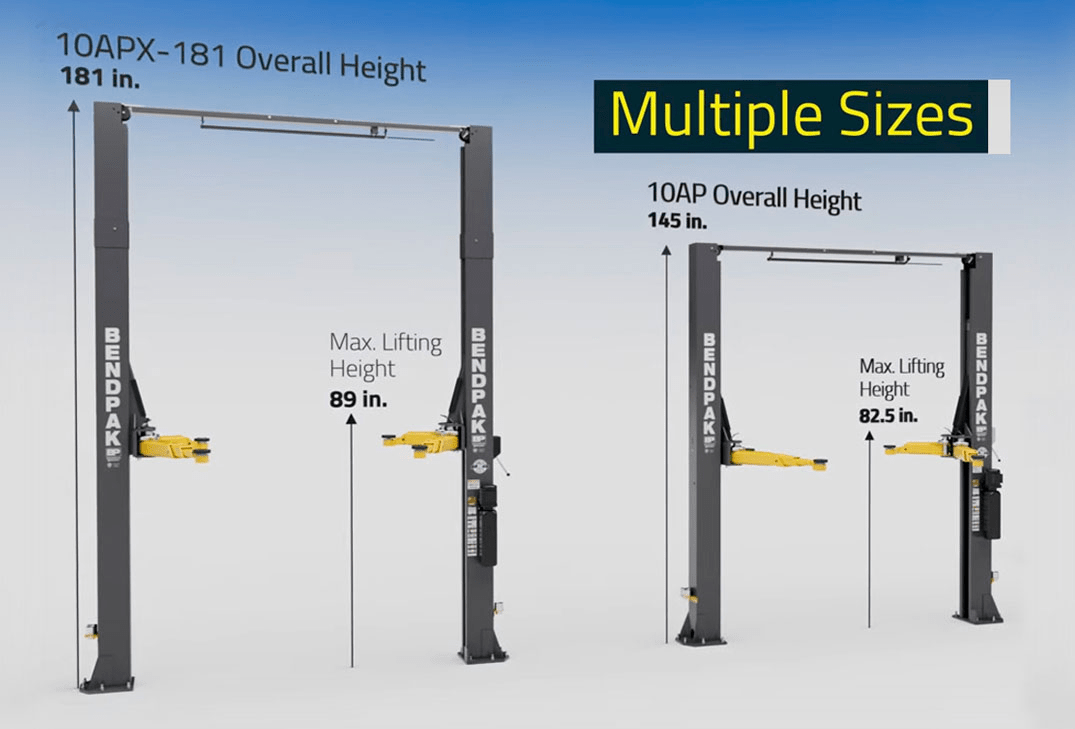

E – Height Overall: 145″ (3 683 mm)

F – Width Overall: 135″ (3 429 mm) or 145″ (3 683 mm)

G – Outside Columns: 127,5″ (3 239 mm) or 137,5″ (3 493 mm)

Inside Dimensions

H – Inside Columns: 108,5″ (2 756 mm) or 118,5″ (3 010 mm)

I – Drive-Thru Clearance: 97,5″ (2 477 mm) or 107,5″ (2 731 mm)

Arms & Pads

K – Front Arm Reach: (MIN)

24,5″ (622 mm)

K – Front Arm Reach: (MAX)

50″ (1 270 mm)

L – Rear Arm Reach: (MIN)

32″ (813 mm)

L – Rear Arm Reach: (MAX)

59,25″ (1 505 mm)

Screw Pad Adjustment:

2″ (51 mm)

Max Load Per Arm

2 500 lbs. (1 134 kg)

Power Unit

Motor: 220 VAC, 60 Hz, 1 Phase

Noise: <70 dB
