Atlas BP12000X 12,000 lbs Baseplate Lift

Name: Atlas BP12000X 12,000 lbs Baseplate Lift
SKU: 1511
Availability: InStock

Original price was: $6,000.00.Current price is: $4,799.00.

Description

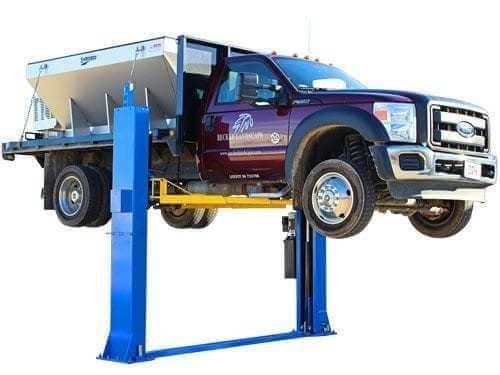

The Atlas® BP12000X is a commercial grade heavy duty 12,000 pound capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release.

This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas® BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.

Features & Benefits

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 122 1/2″ (10′ 2 1/2″)
Adjustable Width
3-Stage Symmetric Arms

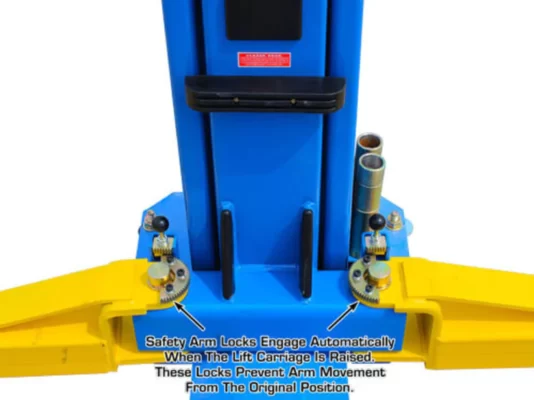

Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
Free 12 piece Truck Adapter Set
Mounting Hardware Included
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP12000X Specifications

Capacity	12,000 lb.

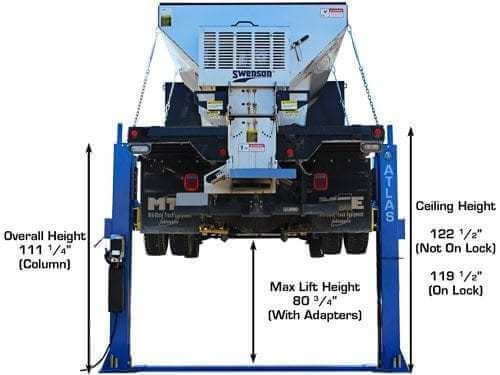

Overall Height	122 1/2″ (10’ 2 1/2″)

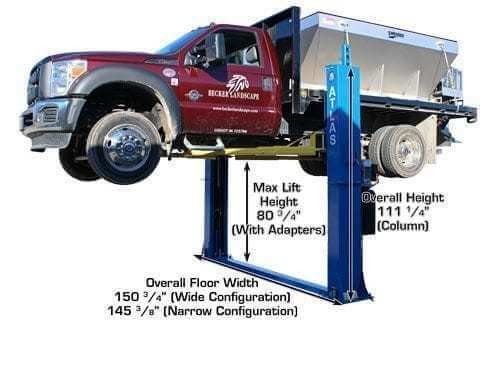

Overall Floor Width	149 3/8″ (12’ 5 3/8″) or 154 1/2” (12’ 10 1/2”)

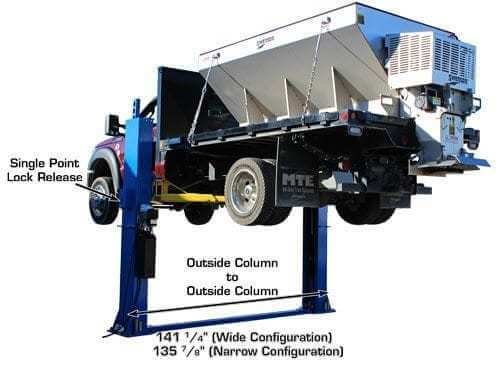

Outside Column to Outside Column	135 7/8″ (11’ 3 7/8″) or 141 1/4″ (11’ 9 1/4”)

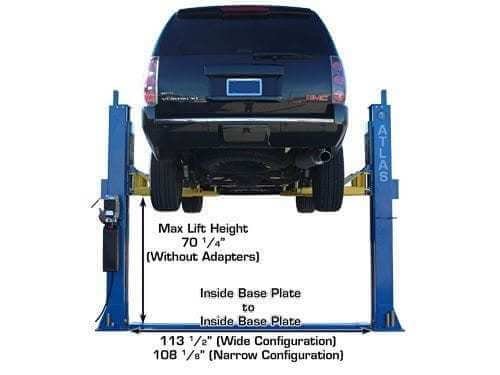

Maximum Lift Height (Without Adapters)	77 1/2″
Maximum Lift Height (With Adapters)	88 1/2″
Minimum Arm Height	4″
Inside Column	118 1/8” (9’ 10 1/8”) or 123 1/2″ (10’ 3 1/2″)
Drive Thru	103 5/8” (8’ 7 5/8”) or 109” (9’ 1”)
Column Size	8 3/4″ x 14″
Column Thickness of Steel	6mm

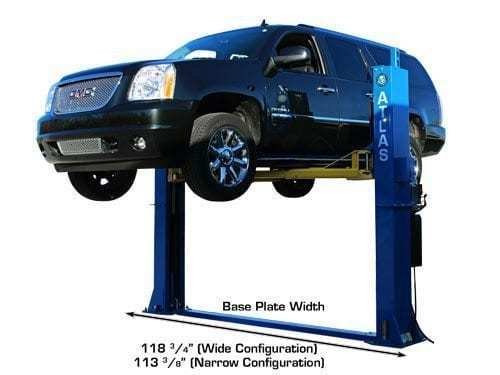

Base Of Lift	18 1/2″ x 21 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)

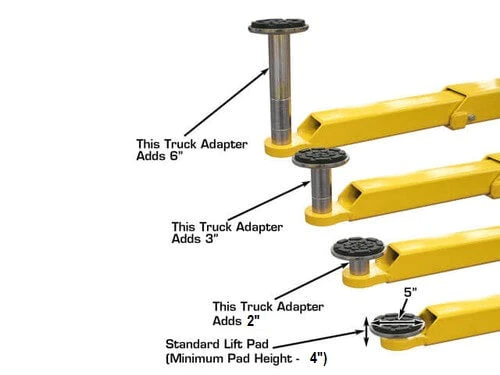

Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
